Description

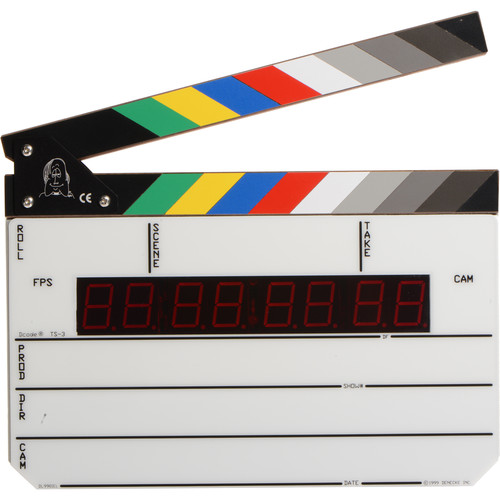

The Deneke TS-3 Time Code Slate reads and displays SMPTE/EBU Time Code; it utilizes an internally mounted SB-2 Syncbox Time Code Generator. This unit Jams to all standard frame rates, including 30 df; user bits jam automatically when the time is set. The high stability crystal ensures low drift and now comes standard with the TCXO option for extreme temperature ranges.
Flat Back
This slate features a flat back for easy holding; also has a removable plate for holding camera logs.
Clapper:
This unit features a colored clapper.
EL Backlit Display:
The EL Backlit Display is particularly useful during night shoots and on dimly lit stages.
Voltage Readout:
A battery voltage readout and low battery warning keep the user informed.
Access Door:
A small sliding door allows quick access to controls and battery pack.
Error Warning:
A Sync Error warning lets the user know different frame rates are being input.
Automatic:
The incoming frame rate is read and the reader automatically sets to that frame rate.
Logging:
A logging feature allows the user to scroll back through the last 16 time code claps.
TCXO:
The high stability Temperature Compensated Crystal Oscillator ensures low drift and is standard on the TS-3.
